Product Group AV-C

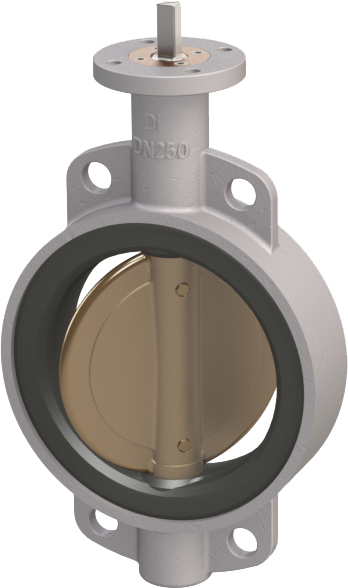

| Description | Centric loose rubber liner butterfly valves |
|---|---|
| Size range | DN 50 up to and including DN 2000 (2” – 80”) |
| Pressure classes | DIN PN 6, 10, 16 ANSI class 125, 150 JIS 5K, 10K, 16K, 20K |
| Liner Materials | NBR, EPDM, FPM, Silicon (Others on request) |
| Body Materials | Cast Iron, Nodular Cast Iron, Cast Steel, Cast Stainless Steel, Cast Aluminium Bronze (Others on request) |
| Disc Materials | Stainless Steel, Alloyed Steel, (Nickel) Aluminium Bronze, (Super) Duplex, Hastelloy, Monel (Others on request) |
| Working pressure | 0 to 16 barg |
| Working temp. | -20 to +200°C |
| Operation | ISO 5211 top flange for direct mount of, Hand lever, Gearbox, Pneumatic actuator, Electric actuator and Hydraulic actuator |
